Baldwin Iron Works Graph Mount for Recessed Trolling Motor Tray (5 Inch) - Bow Mount Graph Holder

Overview

The Baldwin Iron Works Graph Mount is a dedicated, aluminum framework designed to position a graph-style fish finder onto a recessed trolling motor tray. This listing features the mount only; the recessed tray is sold separately. With a 40-degree adjustment range and a universal graph bolt pattern, this mount aims to help you dial in the best viewing angle and electronics placement for your setup.

Key Benefits

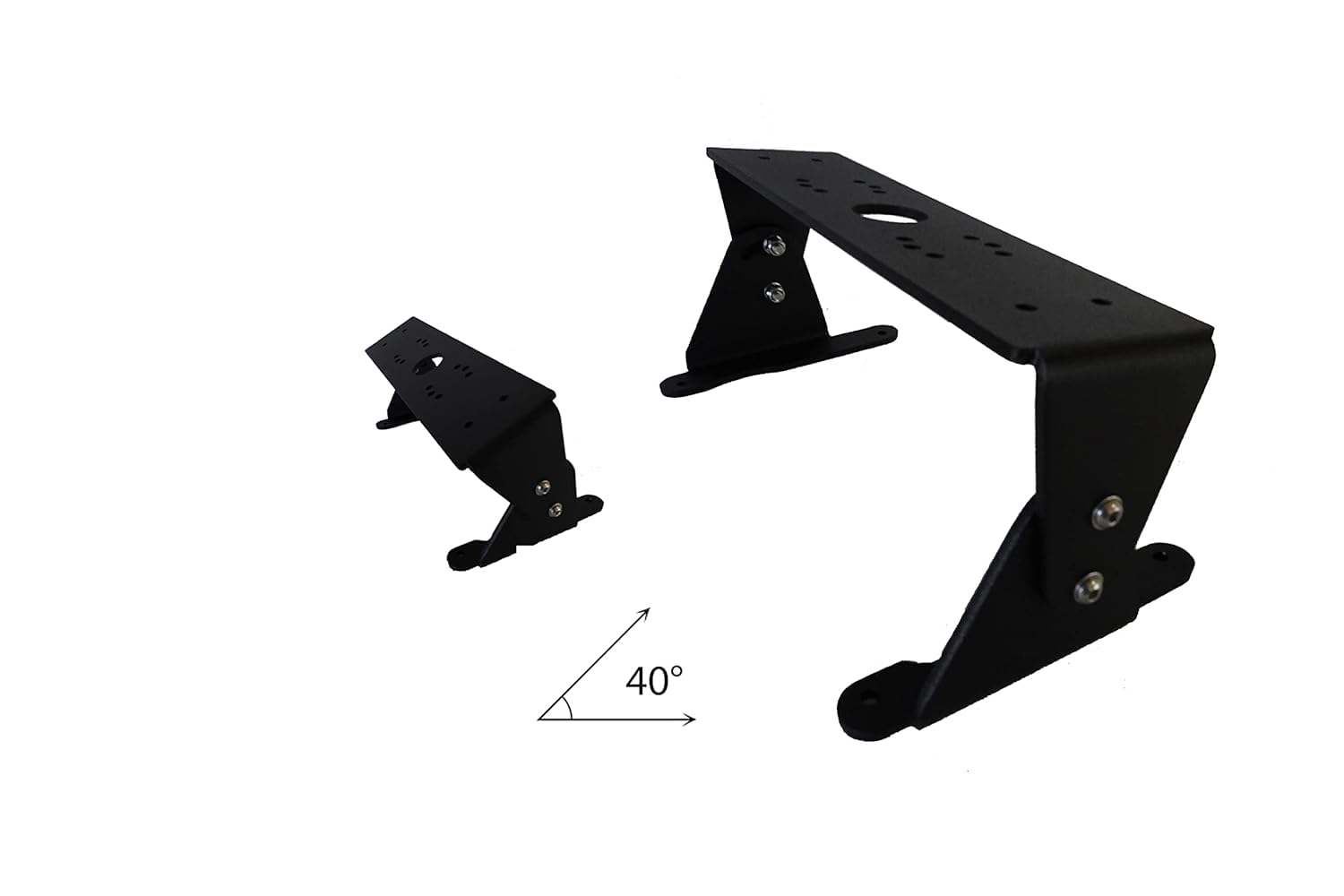

• 40 degrees of adjustable tilt for customizable viewing angles on the water.
• Universally compatible bolt pattern designed to fit most major fish finder graphs.
• Constructed from 3/16" aluminum for a sturdy, long-lasting mount.
• Powder-coated textured black finish provides UV resistance and a clean, low-profile look.
• Includes stainless steel hardware to support durable, corrosion-resistant installation.

Note: The tray itself is not included with this product. The top plate is designed to align with existing tray mounting holes, and you may need to adjust hole sizes for #12 screws that are included with the mount. If your gimbal or other components differ, additional drilling on the top plate may be required to achieve the best fit.

Fit and Installation

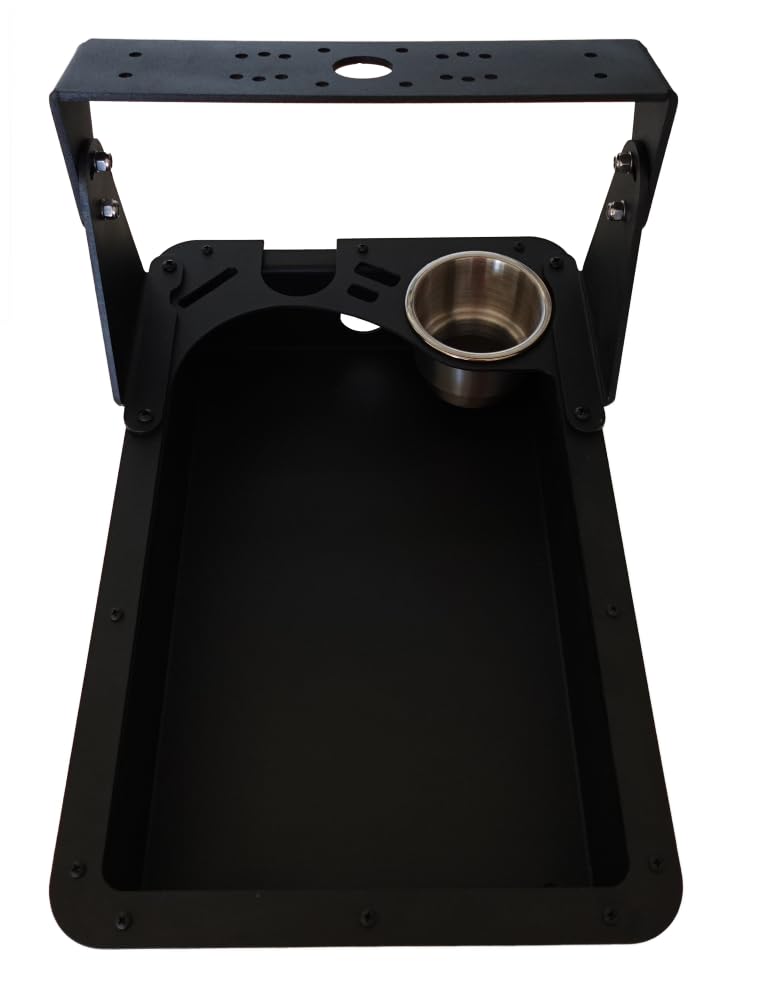

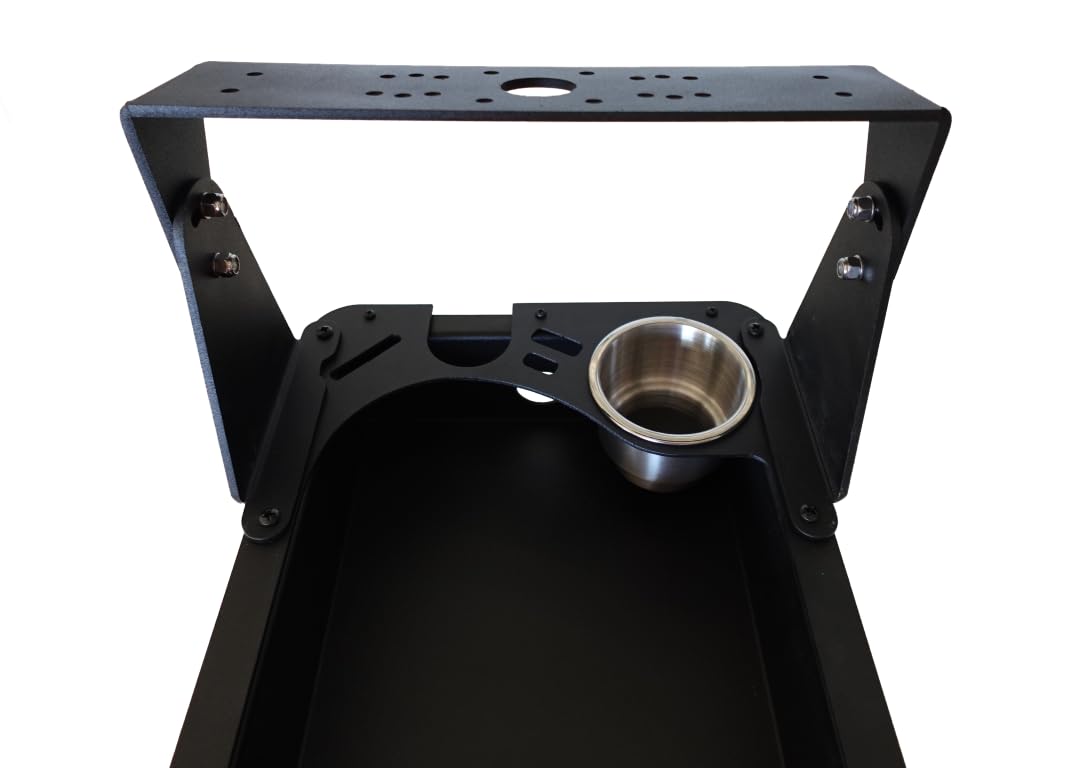

• Designed to work with our recessed trolling motor trays using existing mounting holes.
• Four pre-existing holes are used for mounting; larger holes may be needed for the included #12 screws.

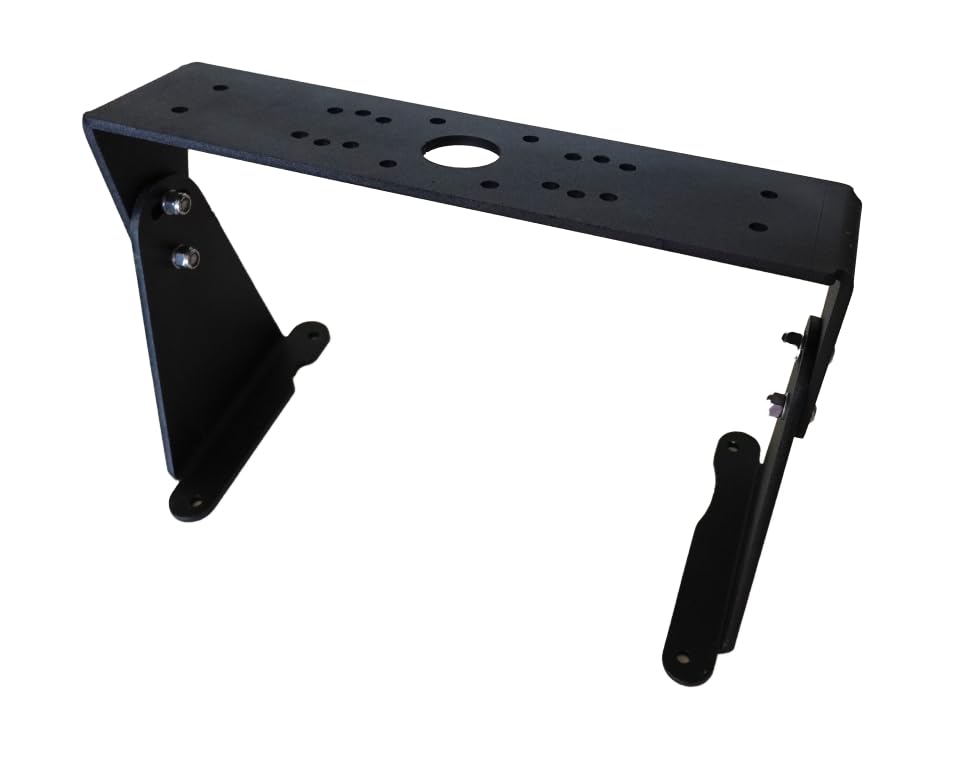

• Top plate dimensions: 12.75" x 3.25" with a center hole of 1.3"; overall height up to 8.25" at the tallest position.

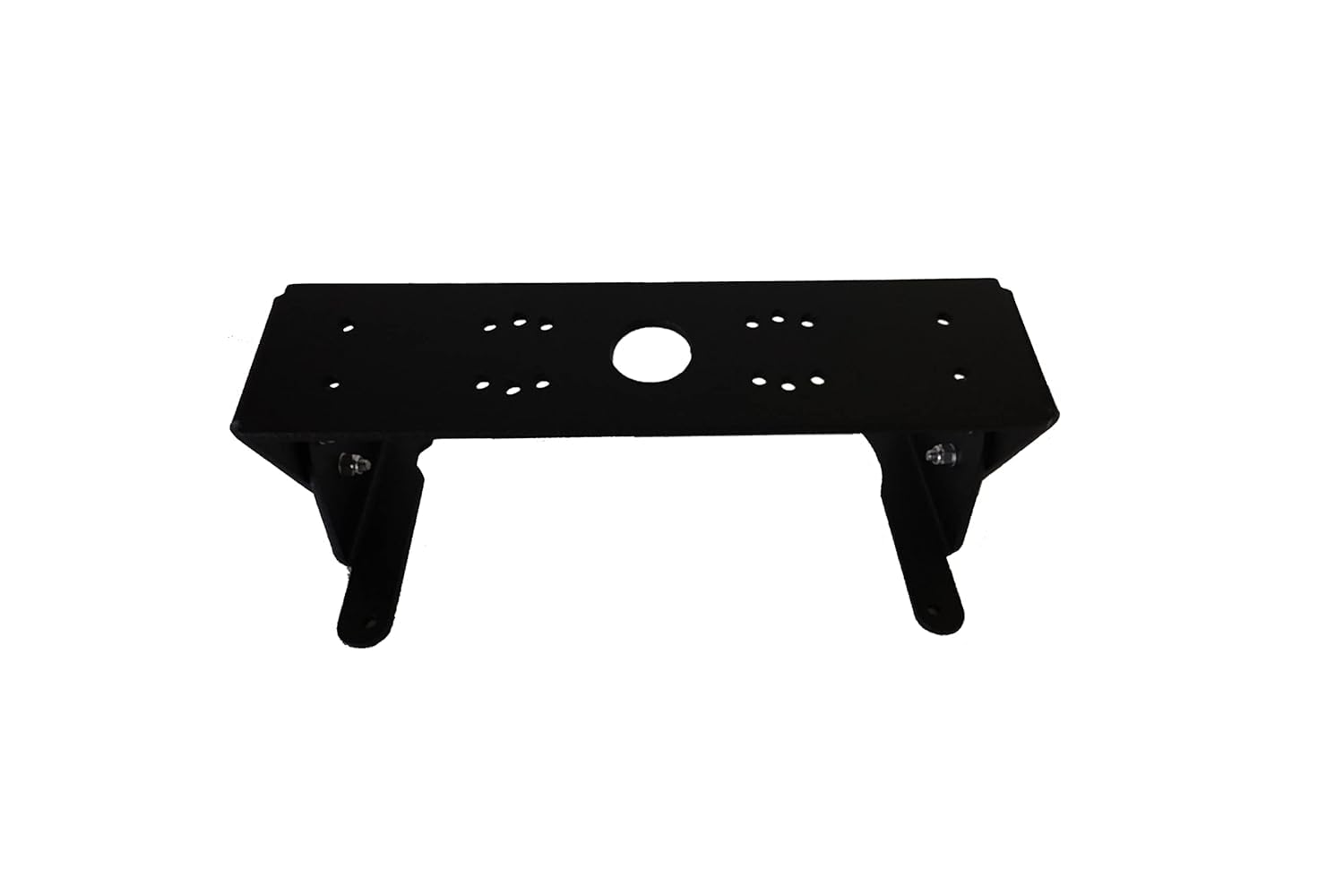

• Top plate features a universal graph bolt pattern to accommodate most graphs from major manufacturers.

The system is powder-coated black for a durable, weather-ready finish and pairs with stainless steel hardware for a robust, on-deck mount. If your equipment or gimbal doesn’t align perfectly, you can drill new holes in the top plate to accommodate your setup.

Specs & Finish

• Material: 3/16" aluminum
• Finish: UV-resistant textured black powder coating
• Hardware: stainless steel, included
• Top plate: 12.75" x 3.25"; center hole 1.3"
• Height: up to 8.25" in tallest position

What’s Included

• Top, left, and right mounting brackets
• 4x 1/4" x 1" bolts, washers, nuts
• 4x #12 x 1-3/4" Phillips pan head stainless screws
• 4x 1/4" x 1" bolts, washers, nuts for electronics gimbal bracket

Compatibility: Recessed trolling motor trays are sold separately. This graph mount is designed to work with many popular graphs via the universal bolt pattern, offering a flexible solution for mounting while leaving tray fitment to your existing setup.
