Baldwin Iron Works Graph Mount for Recessed Trolling Motor Tray (8 Inch) – Tray Not Included

Overview

The Baldwin Iron Works Graph Mount is a purpose‑built solution for mounting a graph or fish finder to a recessed trolling motor tray. This listing includes the graph mount components only; the tray itself is not included. Designed to align with our tray system, it offers reliable adjustability and a clean, integrated look.

Built with attention to detail, the unit features a durable top plate and brackets that align with standard mounting patterns, giving you flexibility to position your electronics for comfortable viewing during fishing sessions. If your current gimbal doesn’t align perfectly, you can drill new holes in the top plate to achieve the precise fit you want. The mount is designed to be installed using four of the tray’s existing holes, making installation straightforward for many setups.

Key fit and compatibility

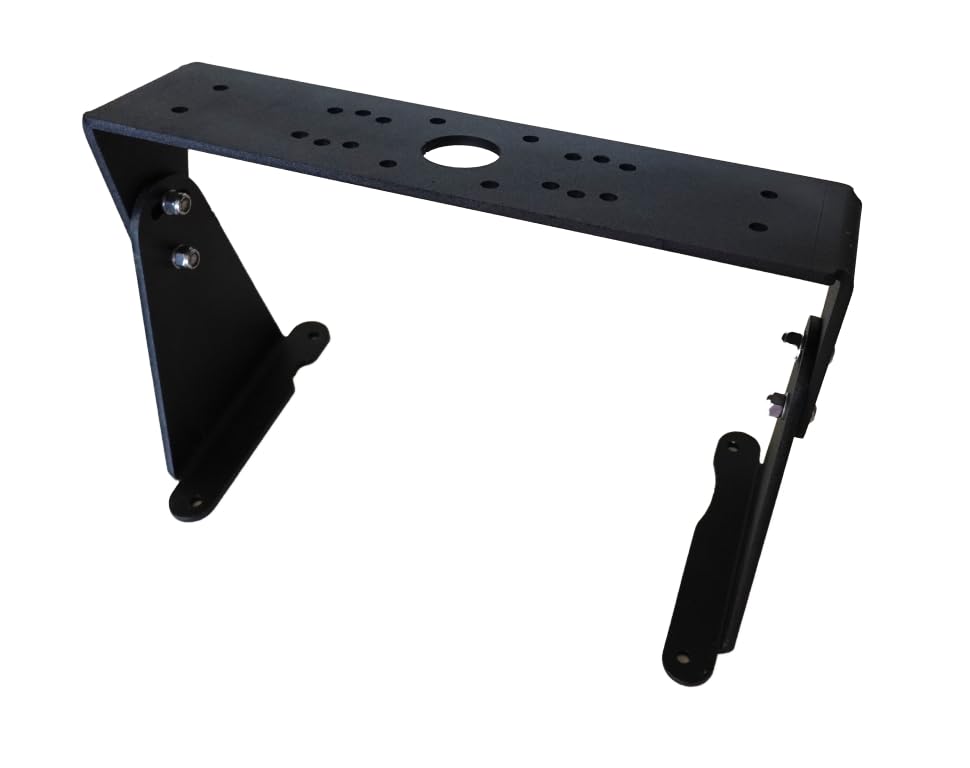

• Universal graph bolt pattern on top to fit most large fish finder graphs from major brands
• Uses the tray’s existing mounting holes for a simple, secure installation

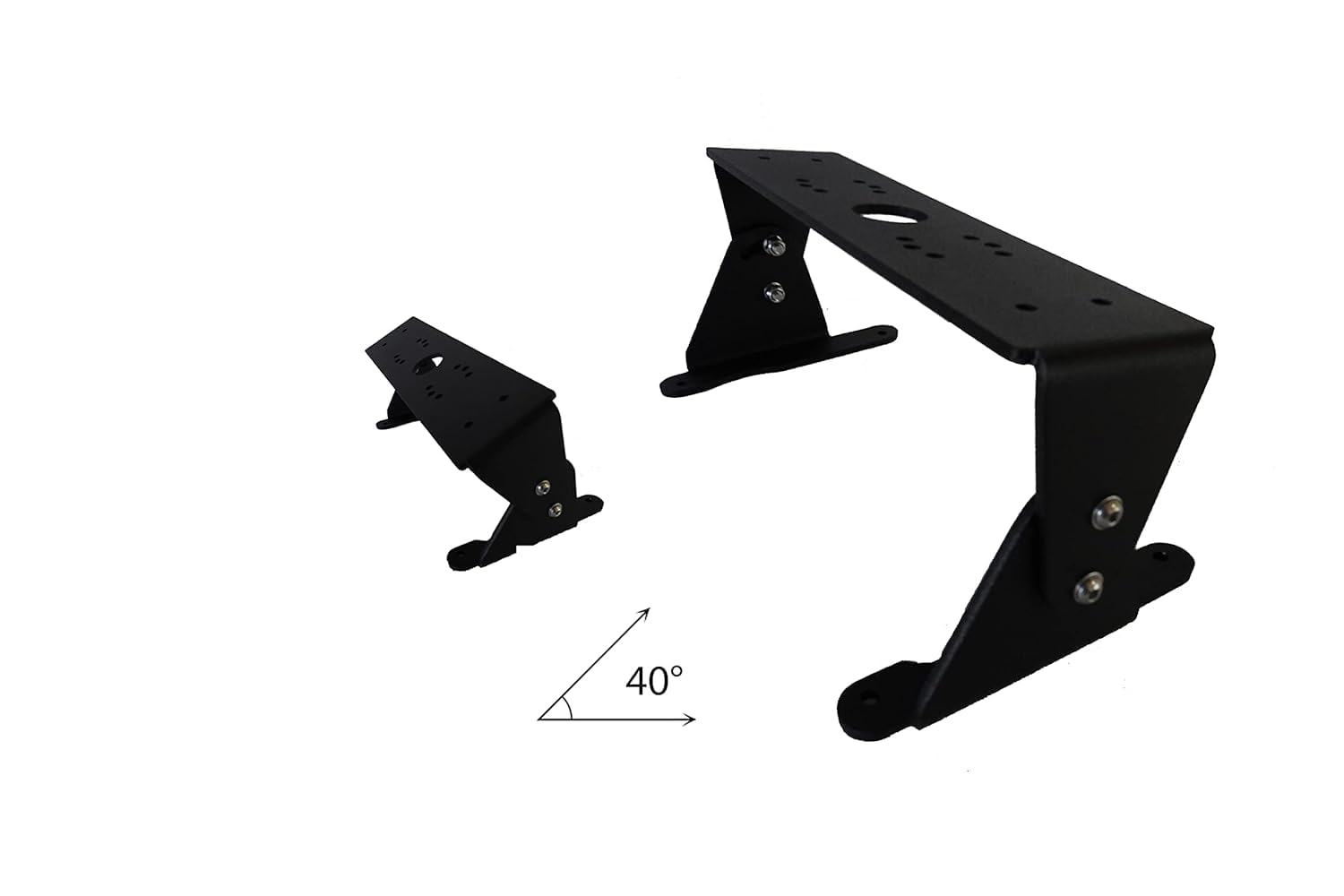

• 40 degrees of adjustment to help you find the most comfortable viewing angle
• Top plate dimensions: 12.75” x 3.25”; center hole: 1.3”

Quality, build, and finish

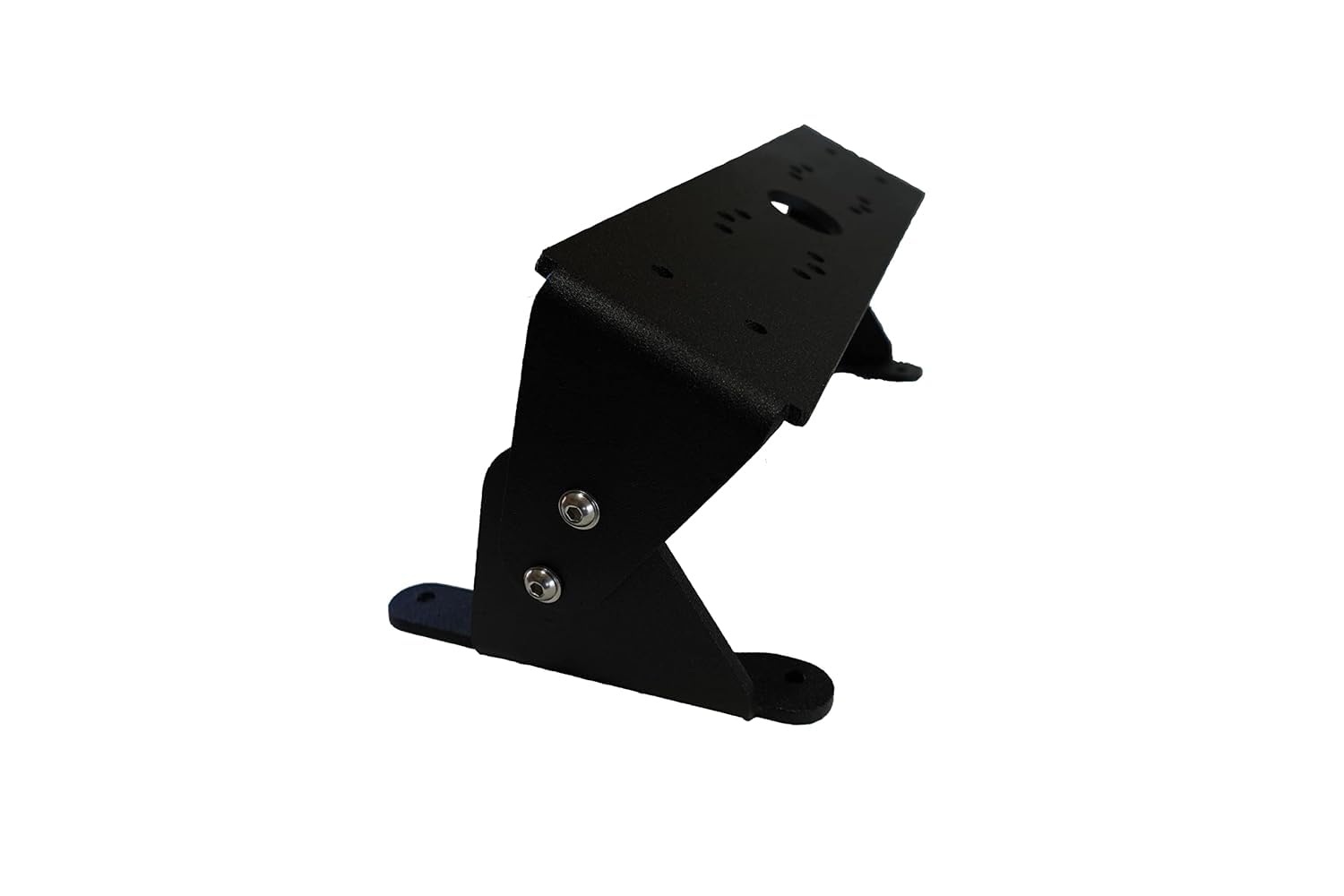

• Made from 3/16" aluminum for solid, lightweight strength

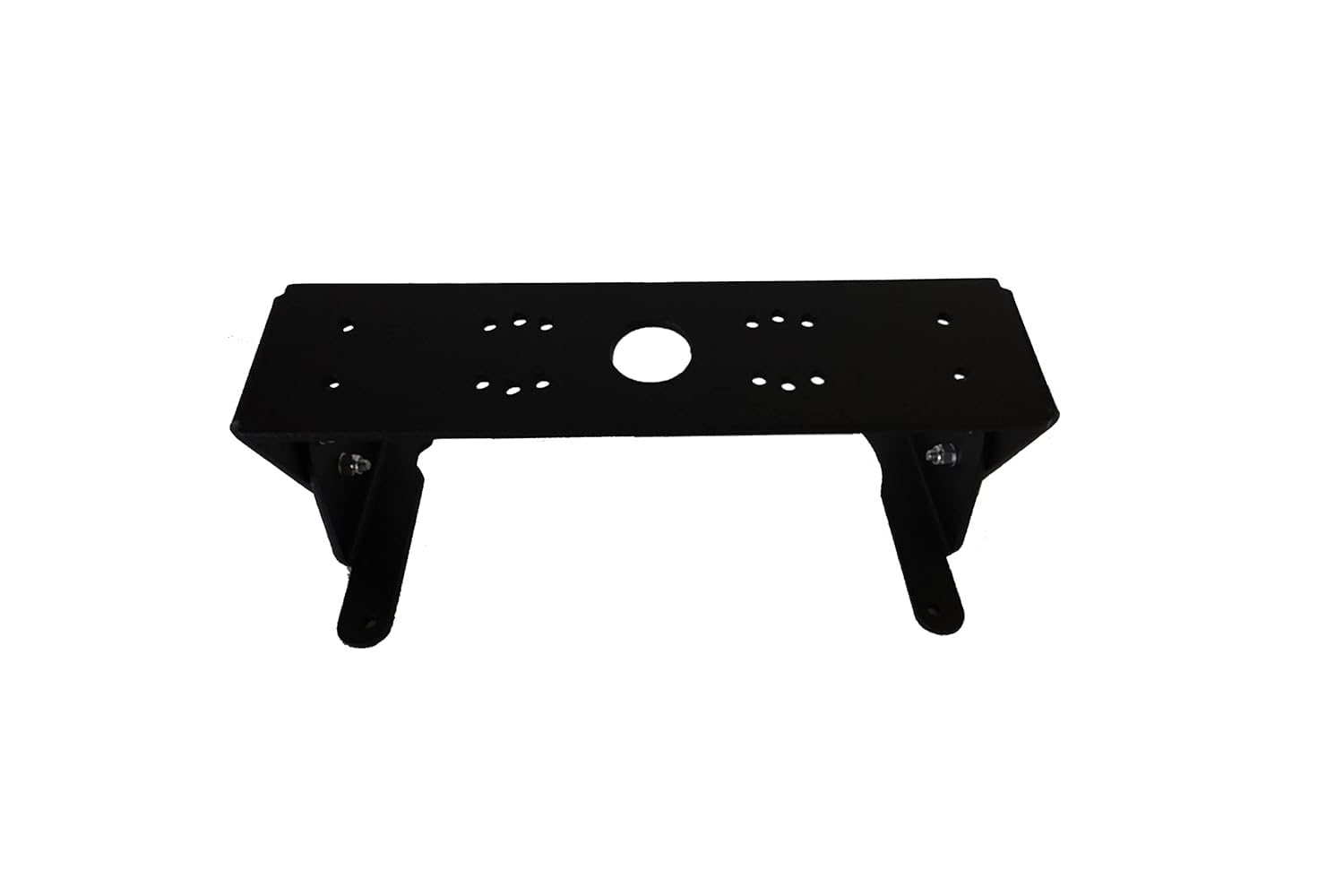

• Powder coated texture black finish for UV resistance and durability
• Stainless steel hardware included for long‑lasting performance
• Top plate height reaches 8.25" at its tallest position

Installation notes

• Tray not included; the mount is designed to work with our recessed trolling motor trays
• Enlarging four pre‑existing holes may be required to accommodate larger #12 screws included with the mount
• If your gimbal system requires, you can drill new holes in the top plate to match your hardware

What you get

• Top, left, and right mounting brackets
• 4x 1/4" x 1" bolts, washers, nuts
• 4x #12 x 1-3/4" stainless steel screws
• 4x 1/4" x 1" bolts, washers, nuts for electronics gimbal attachment

Note: Recessed trolling motor tray is sold separately. This mount is designed to complement our tray system with a focus on reliable, adjustable graph mounting rather than a complete tray solution.

Why choose Baldwin Iron Works

Expect durable materials, thoughtful design, and a mounting solution that prioritizes ease of use and adaptability in the field. Benefits are presented as possibilities based on the product design and included features, not guarantees.
