Baldwin Iron Works Recessed Trolling Motor Tray for Ultrex Pedals with Graph Mount

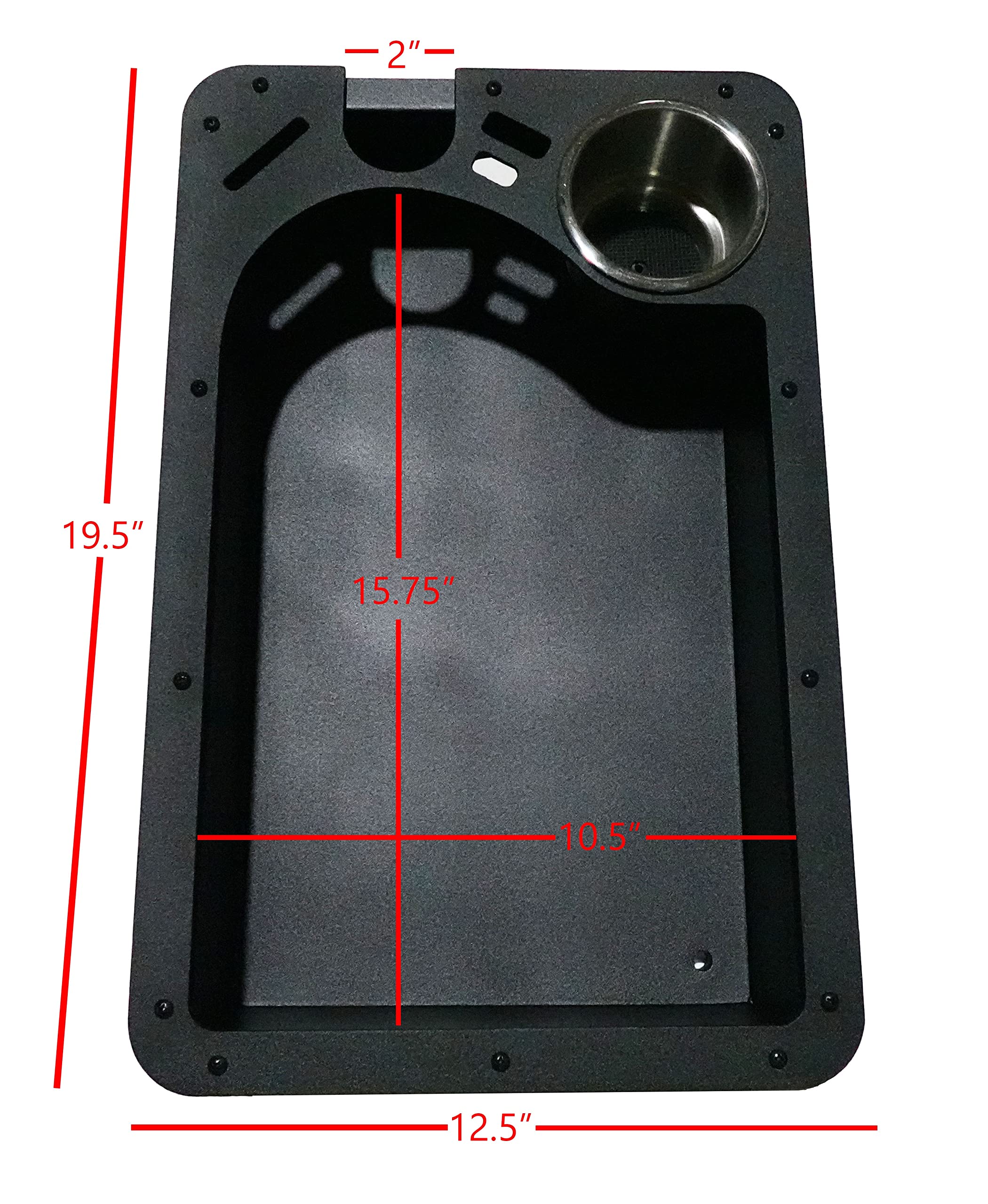

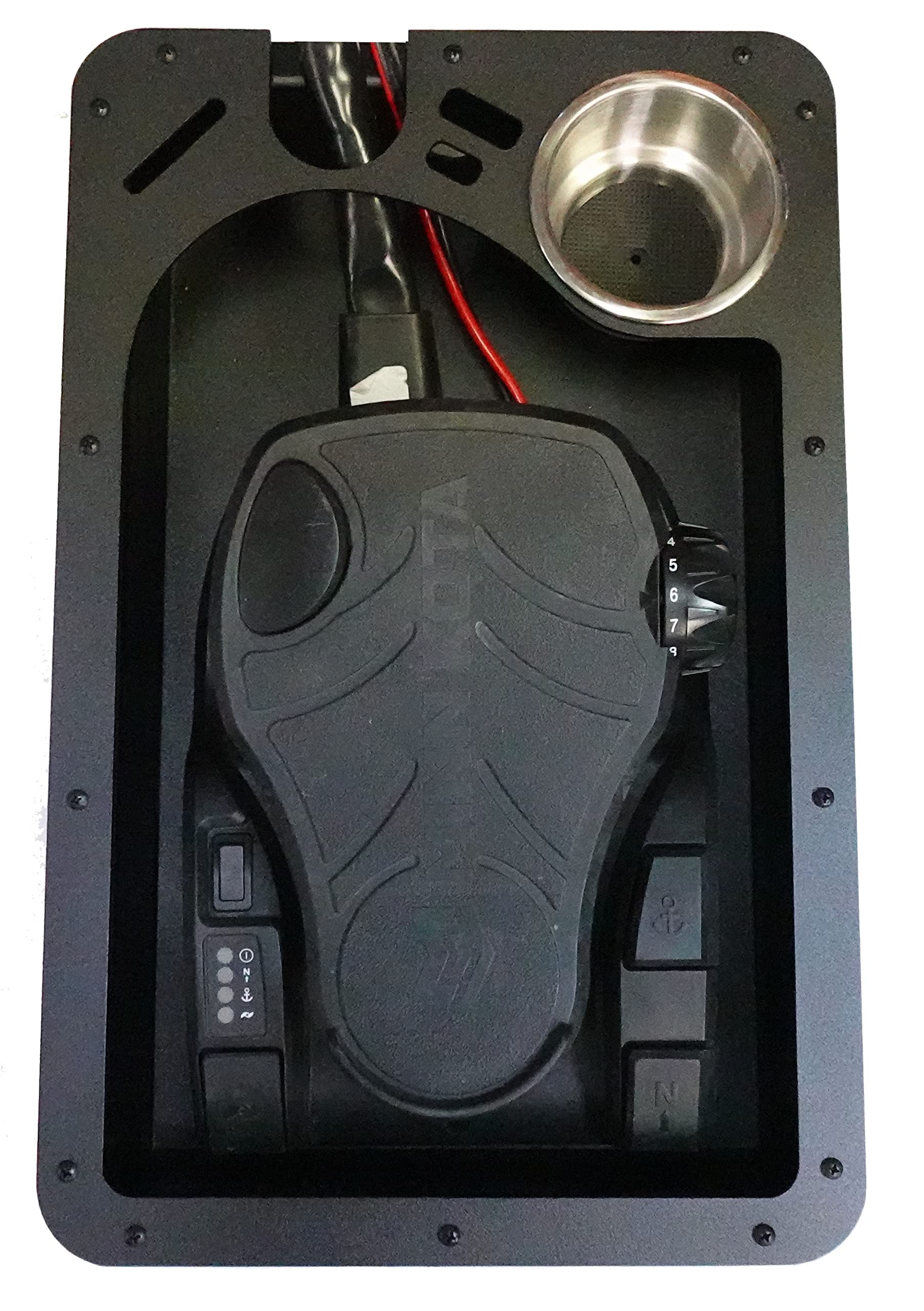

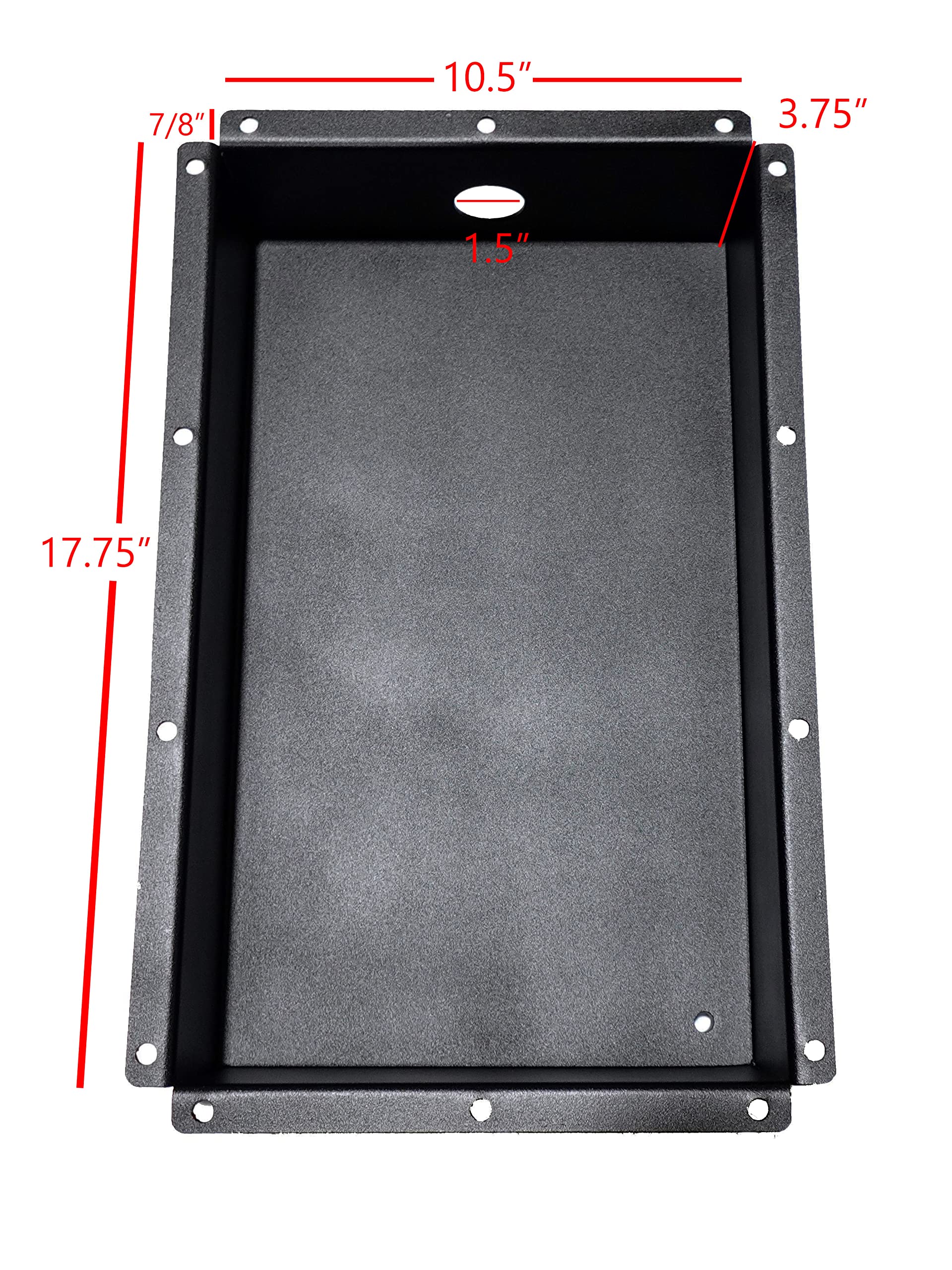

Engineered in the United States, the Baldwin Iron Works recessed trolling motor tray is built to accommodate Minn Kota ULTREX pedals. It’s machined from a sturdy aluminum with a .100 inch wall, delivering a rigid, quiet platform even when you’re hauling gear or navigating chop. The powder-coated matte black finish provides a protective layer while minimizing glare in bright sun. Designed for straightforward installation, the tray uses rivet-nut inserts for a strong anchor and four pre-existing holes to align with common mounting patterns. The package includes a cutting template, black stainless steel screws, a rubber drain hose, and zip ties to help you organize cables. Inside-bottom dimensions measure 17.5 inches by 10.5 inches, while the top lip spans 19.25 by 12.5 inches, and the pan depth sits around 3.75 inches. This thoughtful combination of size and strength offers a clean, integrated appearance right at the bow or rail of your boat.

Durability and finish you can trust

Key construction details emphasize reliability in real-world boating, coastal spray, and bright sun.

• All‑aluminum 0.100 inch construction for stiffness and long-term durability.
• Powder-coated black UV‑resistant finish to resist weathering and scuffs.
• Made in America with stainless steel hardware included for corrosion resistance.
• Rivet-nut drilling compatibility supports secure, neat mounting with your chosen hardware.

Graph Mount versatility and fit

The included graph mount is designed to pair with this recessed tray, offering flexible positioning to fit your setup.

• Top plate measures 12.75” x 3.25” with a 1.3” center hole and 5.25” tall at its highest point.
• 40 degrees of adjustment lets you dial in a comfortable viewing angle.
• Universal graph bolt pattern aims to fit most major graph brands; drilling new top-plate holes is possible if needed.
• Attachment leverages the tray’s existing holes for a straightforward install, with some gimbals requiring minor modification.

What’s included and practical tips

• Cutting template for precise hole placement is included.
• Stainless steel hardware: four 1/4 x 1” bolts, washers, nuts for mounting.
• Four #12 x 1-3/4” Phillips pan-head stainless screws for securing the mount.
• Four additional 1/4 x 1” bolts, washers, nuts for electronics gimbal bracket attachment.

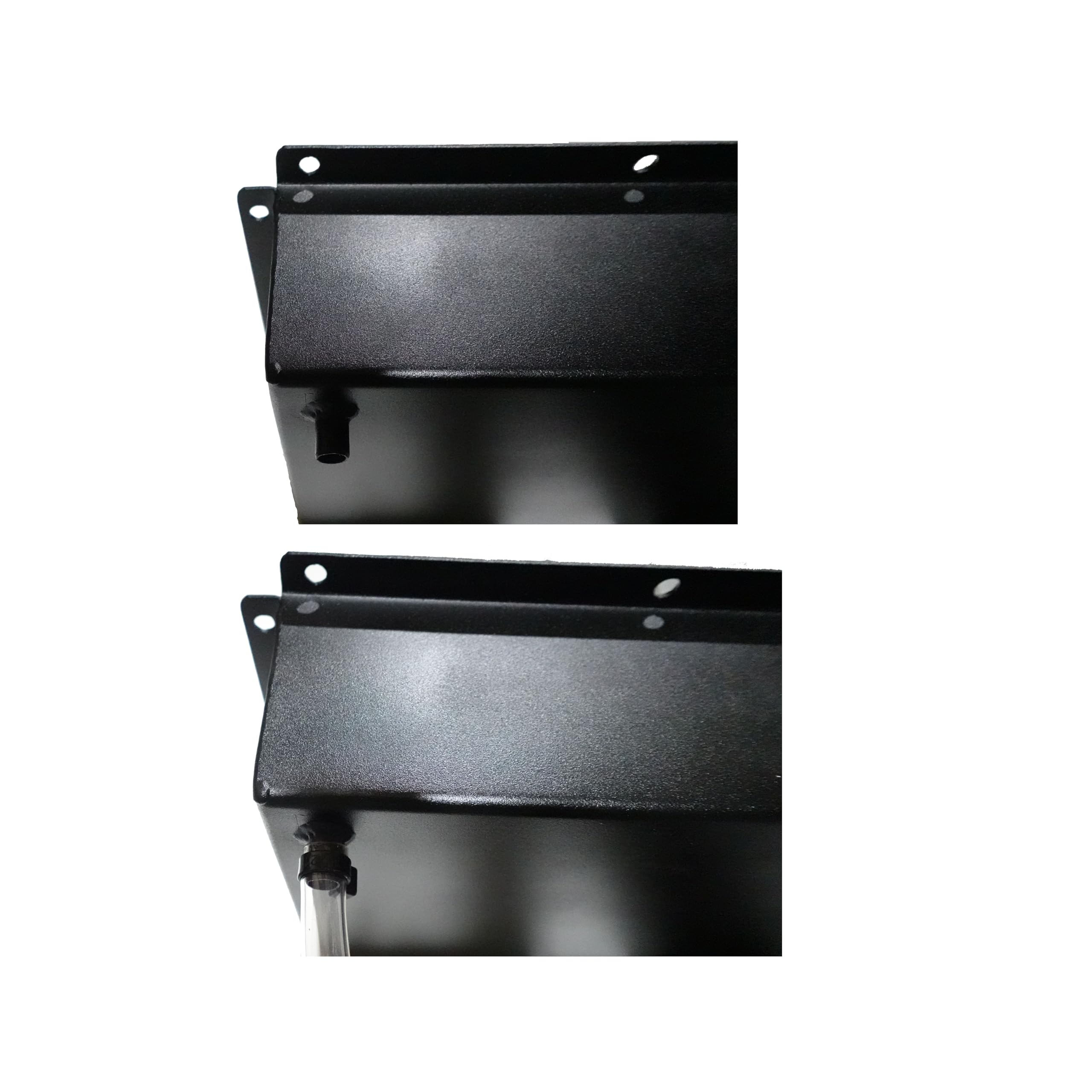

• Rubber drain hose and zip ties to help manage water and cables.

In real‑world use, imagine a clean cockpit where a graph sits within reach and a rugged tray provides a solid base for accessories. The design emphasizes ease of installation, thoughtful cable management, and durable materials that hold up under sun, spray, and routine boating chores without asserting guarantees—only the possibility of a neater, more organized setup.
