Notch Rapid Rig — Solid Forged Steel Quick-Connect Ring & Toggle (1/2" Rope, 13,500 lb)

Overview

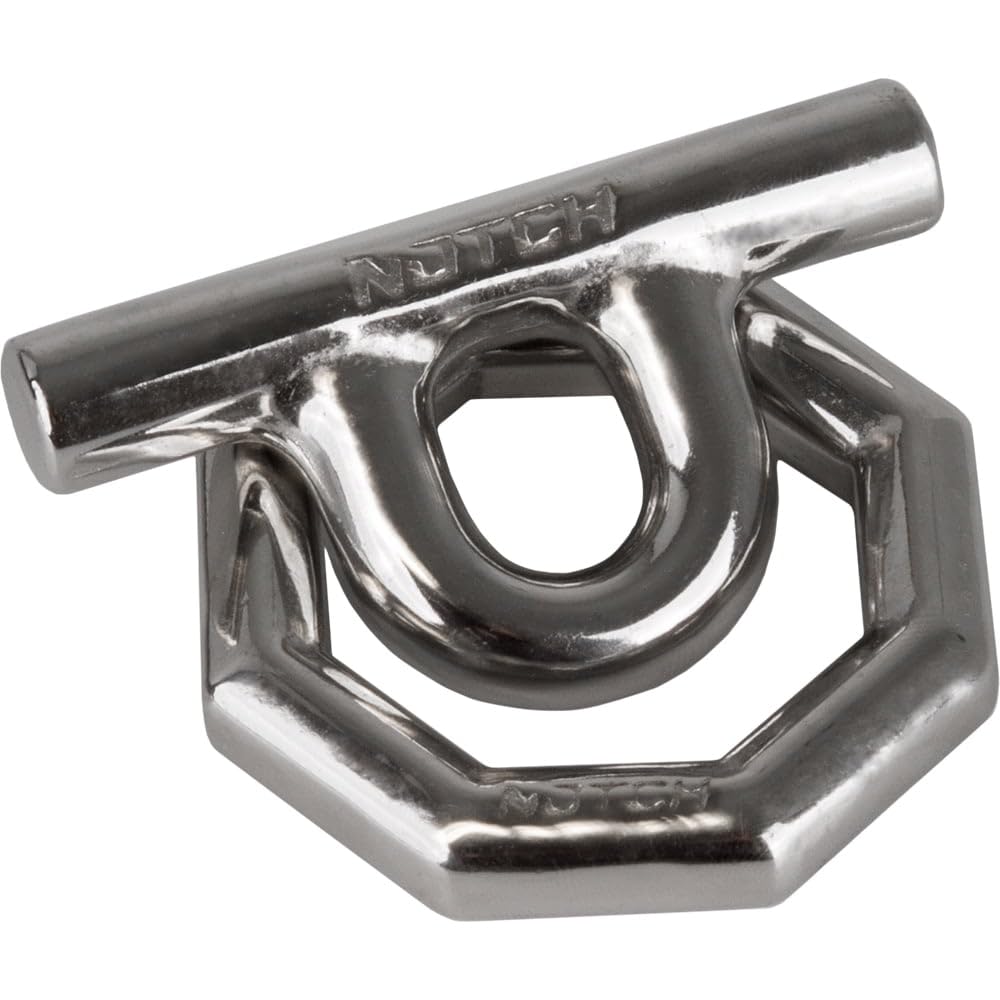

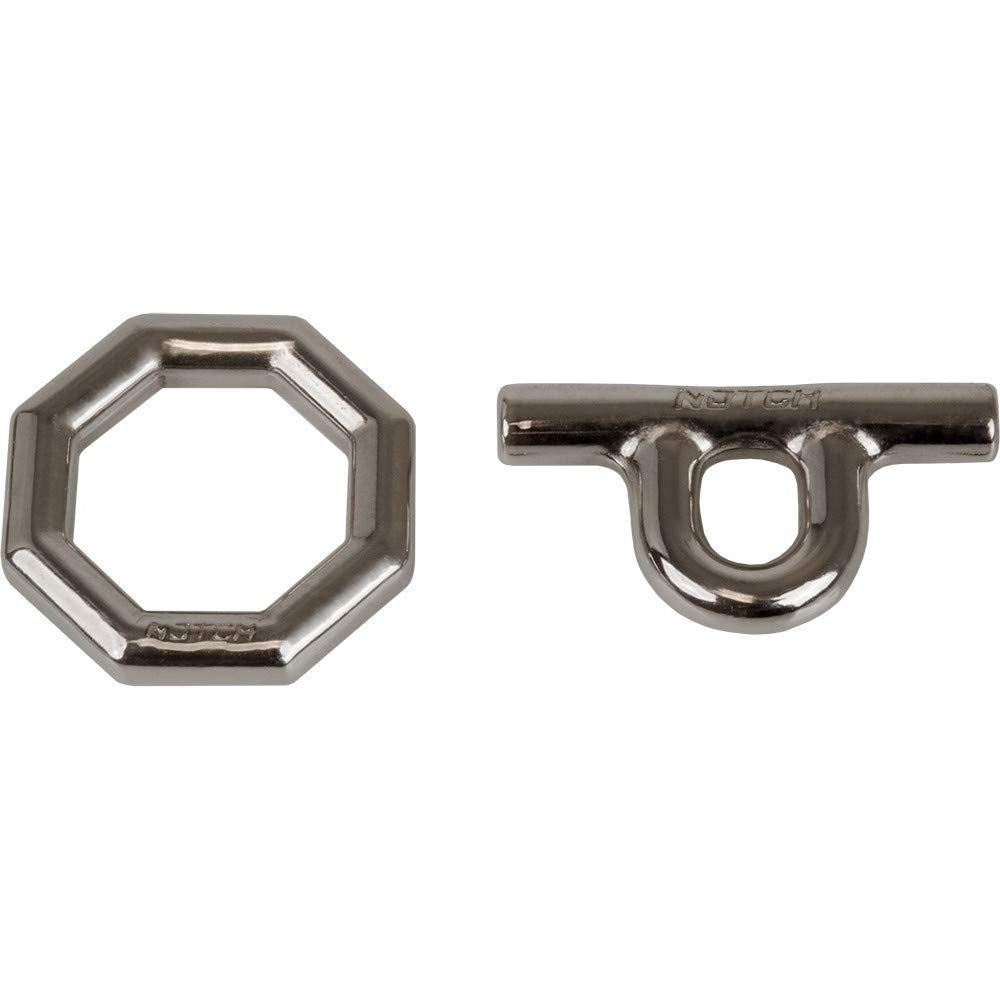

The Notch Rapid Rig is a rugged quick-connect system designed for fast, reliable rope work in demanding settings like arboriculture, vehicle recovery, logging, and farming. Comprised of an octagonal steel ring and a floating toggle, the setup uses a splice-attached ring at the rope’s end and a toggle that freely rides along the rope through its hole. When used with an appropriate rope, the pair forms a positive connection that can be positioned around a solid object, offering an efficient alternative to tying knots. The result is a consistent, repeatable termination that remains stable under shifting loads, making it a practical tool for pro-grade rigging without the need for knotting every time.

Key Benefits

• Fast, repeatable positive connection that simplifies rigging and hauling tasks
• Prevents knot creep and slipping under dynamic loading, compared to traditional knots
• Flexible configurations for use in arboriculture, winching, vehicle recovery, logging, and farming

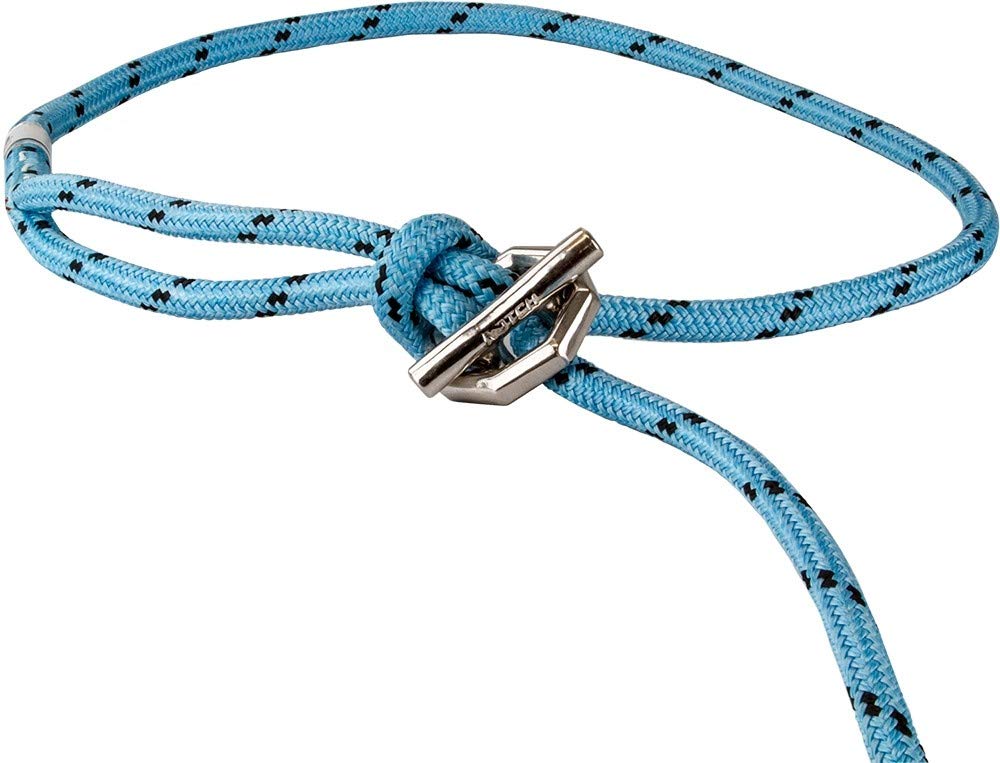

• Optional ring attachment through spliced termination or scaffold knot for diverse setups

Specifications & Use

• Tensile Strength: 13,500 lbs. (60 kN) — built for heavy-duty applications
• Construction: Solid forged steel for durability and reliability in tough environments
• Rope Compatibility: Recommended rope size 3/16" to 1/2"

How It Works & Real-Life Scenarios

In practice, the Rapid Rig helps you create a safe, positive termination around a solid anchor with a few deliberate movements. The ring anchors to the rope end, while the toggle rides freely along the rope, allowing you to thread it through a suitable anchor or around a fixed object. This setup is especially useful when quick connections are needed between cycles of rigging and hauling, or when a consistent termination matters for speed and efficiency. Use cases span arboriculture, winch operations, vehicle recovery, logging, and farming tasks where time and reliability matter.

Safety & Guidance

• The Rapid Rig should never be used for personal protective applications or for anchoring work positioning or life-support lines
• Operate with the recommended rope size and inspect the connection before each use
